BENDIN500-Cultural Guardrail
- Artistic Cultural Design: Exquisite custom cultural pattern blends regional elements, delivering safety guard plus landscape beautification.
- Premium Alloy Construction: High-grade steel or aluminum alloy with fine workmanship for solid, long-lasting structural stability.
- Superior Weather & Rust Resistance: Galvanized, spray or baking paint surface treatment stands outdoor harsh climate with strong anti-corrosion performance.
- Modular & Cost-Effective: Modular structure realizes quick field assembly, lowering construction cost while balancing art and practicality.
Product Speciffcations

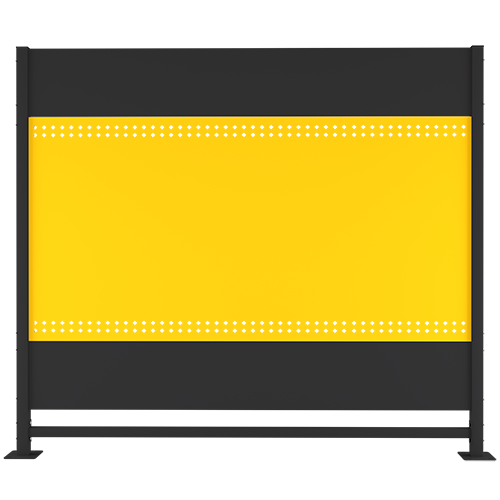

Cultural Guardrail Mesh Panel Specifications
| Parameter | Standard Specifications |
|---|---|
| Panel Size (H×W) | 0.6m–3.0m (custom size) |
| Panel Type | Full perforated / Mesh + perforated / Full mesh |
| Perforation / Mesh | Round holes 6–8mm, 50×50mm / Custom pattern holes |
| Plate / Wire Thickness | Plate:1.0–1.2mm; Wire:4.0mm / Plate:0.8–2.0mm; Wire:3.0–6.0mm |
| Frame Tube | 20×30mm, 30×30mm / 20×20mm, 40×40mm square tube |
| Surface Treatment | Powder coating / Galvanized + powder coating |
| Color | Gray, White, Blue, Black / Custom RAL, LOGO color |
Available Post Systems
Cultural Guardrail Post Specifications
| Square Post | Specification |
Hole Size | 50×50mm / 60×60mm / 80×80mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Special Accessories
- Security Accessories & Extensions
1. Mesh-to-Post Connection Components
- Spider Clips / U-type Hold Clips: Decorative coated metal clips for fastening cultural style panels onto upright posts, neat appearance for landscape & workshop cultural partition.
- Security Bolts (M6/M8) + Lock/Flat Washers: Anti-tamper bolts with matched washers to avoid loosening, keep tidy exterior.
- L-angle Brackets: Auxiliary connectors for frame inner fixing and wall-mounted installation at corner positions.
- Self-tapping Screws: Used for fixing decorative patterned plates to border square tubes.
2. Floor Fixing Components
- Expansion Bolts M12×100: Fasten post flange plates onto concrete ground, 4 sets per upright post.
- Cast Iron Weighted Base: Heavy counterweight base for non-drilling temporary layout of cultural guardrail.
3. Optional Gate Accessories
Swing Gate
- Decorative Bolt-on Hinges: Coated appearance-matched thick hinges for single/double decorative swing gates.
- Spring Latches & Lock Hasps: Upper & bottom drop bolts plus lock catch compatible with standard padlocks.
- Rubber Bumpers: Hidden anti-collision rubber stoppers to maintain overall ornamental look.
Sliding Gate
- Top & Bottom Slide Tracks: Surface-treated slide rails consistent with guardrail color.
- Hanging Rollers / Ground Wheels: Silent wheel assemblies for smooth sliding of decorative gate panels.
- End Limit Stops: Concealed limit fittings to avoid gate derailment without damaging overall ornamental effect.
4. Other Auxiliary Accessories
- Decorative Post Caps: Color-matched plastic or coated steel caps for post top beautification and anti-corrosion.
- Anti-slip Rubber Pads: Hidden cushion pads under post base to protect ground surface.
Applications of Cultural Guardrail

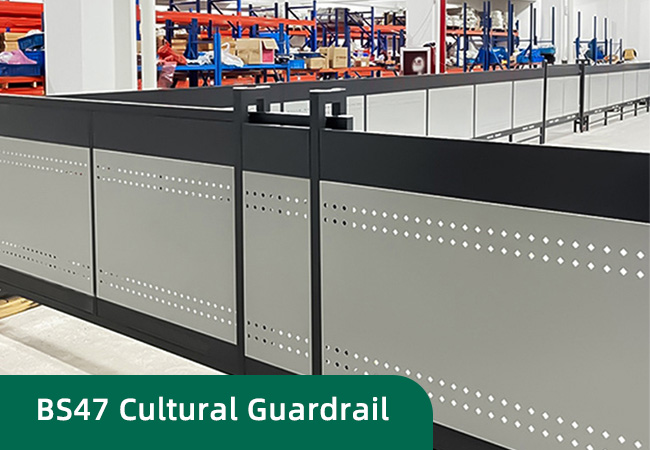

Sleek black-and-white perforated panels provide clear visibility while protecting operators from machinery hazards, ideal for modern factory environments.
Bold red and white design enhances safety awareness, clearly marking restricted machine areas and preventing unauthorized access.
Green-framed perforated enclosure offers full machine containment, reducing noise and debris spread while maintaining ventilation.
Blue-framed perforated fence creates a clean, organized production line layout, improving safety and workflow efficiency.
Detailed Installation Process for Cultural Guardrail
The installation of cultural decorative workshop guardrail follows standardized steps to ensure neat layout and consistent ornamental appearance:
● Step 1: Mark upright post positions along planned route according to design drawings, reserve space for decorative layout and gate opening.
● Step 2: Drill fixing holes on concrete floor or dig foundation pits on soft ground based on post specification.
● Step 3: Secure posts with flange plates & expansion bolts; apply cast iron weighted bases for drill-free temporary installation.
● Step 4: Align decorative guardrail panels with posts and pre-fix via special matching decorative clips.
● Step 5: Tighten all fittings with security bolts; install matched-color hinges, latches or slide tracks when gates are needed.
● Step 6: Inspect overall installation flatness, fastener tightness and gate operation while checking uniform decorative appearance.
Your Trusted Partner for Cultural Guardrail
- High Protection: Optimized decorative framed structure with solid & patterned panel design delivers reliable anti-collision performance to block accidental impact, securing staff and workshop equipment safety while keeping ornamental effect.
- Long-lasting Anti-corrosion: Dual treatment of hot-dip galvanizing (≥80μm) and color powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years for indoor & semi-outdoor cultural partition scenarios.
- Stable Structure: Integrated patterned panel with uniform stress dispersion; neat hidden bolted connection avoids exposed fasteners, balancing structural stability and exquisite decorative appearance.
- Easy Installation: Fully standardized prefabricated decorative components. Single-person installation cuts working time by 50%, saving labor and cost for layout of workshop cultural zoning.
- Good for Workshop Management: Customizable hollow patterns balance light transmission and privacy; artistic appearance beautifies factory environment and standardizes regional division for refined site management.
- Safety & Compliance: Comply with GB/T 3091-2015. Polished smooth edges prevent scratches and help pass regular factory safety inspections.
