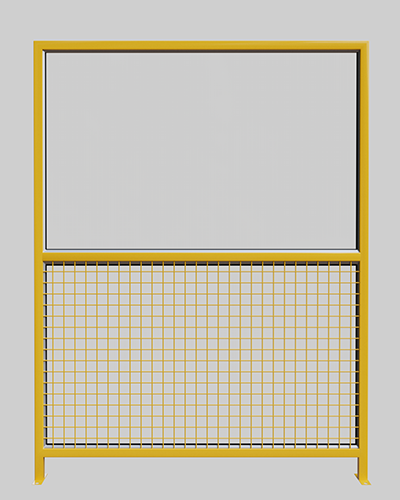

BENDIN600-Acrylic & Welded Type
- High Transparent Safety Structure: Combined welded low-carbon steel mesh & high-light-transmittance acrylic board (92% transmittance), delivering clear visibility and solid anti-impact protection.
- Rigid Non-deformable Build: Firm welded panel structure effectively avoids deformation for long-term workshop safety guarding.
- Excellent Anti-Corrosion Performance: Anti-corrosion coated steel mesh adapts to various harsh indoor workshop environments.
- Modular Quick Installation: Tool-free modular assembly enables easy disassembly and flexible layout for workshop zoning & equipment isolation.
Product Speciffcations
Acrylic & Welded Type Mesh Panel Specifications
| Parameter | Standard Specifications |
|---|---|
| Panel Size (H×W) | 1.8m×2.0m, 2.0m×2.0m / 0.6–3.0m custom size |
| Upper Part | Acrylic / PC sheet, clear / Color, logo, warning text |
| Sheet Thickness | 2.0mm, 3.0mm / 1.5–5.0mm |
| Lower Mesh | 50×50mm, wire dia.4.0mm / 50×100mm, 60×60mm |
| Frame Tube | 20×30mm square tube / 20×20mm, 30×30mm |
| Surface Treatment | Powder coating / Galvanized + powder coating |
| Color | Yellow, Black, Gray / Blue, White, Custom RAL |
Available Post Systems
Acrylic & Welded Type Post Specifications
| Square Post | Specification |
Hole Size | 50×50mm / 60×60mm / 80×80mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Special Accessories
- Acrylic & Welded Type
1. Mesh-to-Post Connection Components
- Spider Clips / U-type Hold Clips: Color-matched metal clips for fixing upper acrylic sheet and lower wire mesh onto support posts.
- Security M6/M8 Bolts + Lock/Flat Washers: Anti-theft bolts with lock washers to avoid loosening from vibration.
- L-angle Brackets: Inner fixing brackets to fasten acrylic panels and wire mesh to frame square tubes.
- Self-tapping Screws: Used for securing acrylic plates and bottom mesh to frame borders without damaging acrylic surface.
2. Floor Fixing Components
- Expansion Bolts M12×100: Fasten post flange base on concrete floor, 4 sets per upright post.
- Cast Iron Weighted Base: Heavy counterweight base for drill-free temporary installation.
3. Optional Gate Accessories
Swing Gate
- Color-matched Heavy-duty Hinges: Surface-finished hinges for single/double swing acrylic-mesh gates.
- Spring Drop Bolts & Lock Hasps: Upper and bottom latches plus lock catch for padlock fitting.
- Rubber Edge Stoppers: Soft anti-collision rubber to protect fragile acrylic from bump damage.
Sliding Gate
- Coated Top & Bottom Slide Tracks: Surface-treated rails matching fence color.
- Silent Hanging Rollers & Ground Wheels: Smooth wheel assemblies to prevent acrylic vibration during sliding.
- End Limit Stoppers: Position stops to avoid gate derailment and acrylic cracking.
4. Other Auxiliary Accessories
- Decorative Post Caps: Color consistent plastic/coated steel caps for post top corrosion prevention.
- Anti-slip Rubber Pads: Base cushion pads to protect floor and reduce installation shake.
Applications of Acrylic & Welded Type
Warehouse

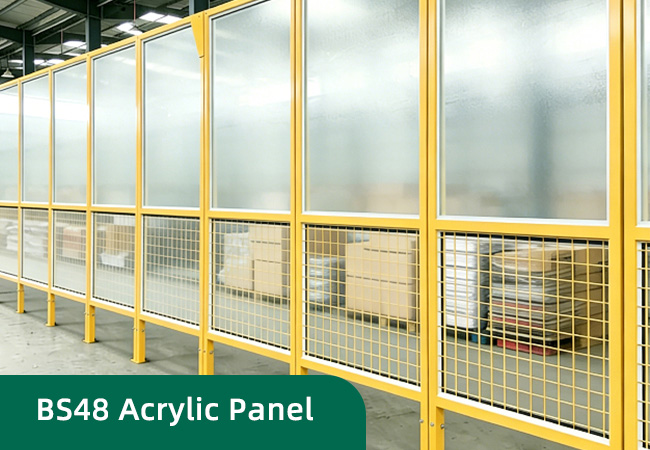

Yellow-framed combo fence with frosted panels & mesh, ensures privacy and airflow for warehouse storage areas.
Aisle
Bright blue modular fence creates clear aisle boundaries, guiding traffic and protecting stored goods in logistics centers.
Production Line

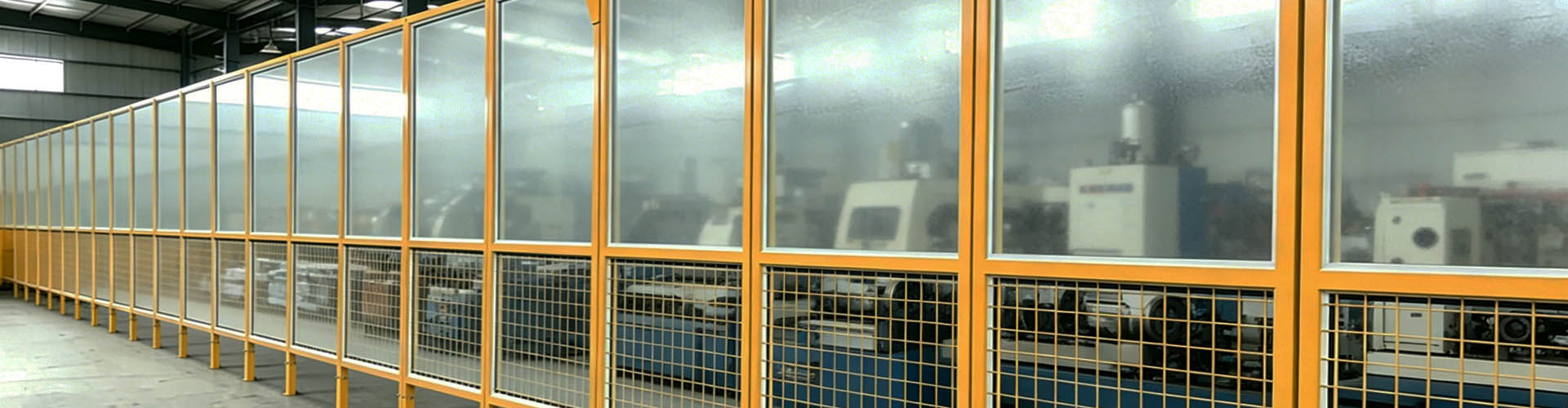

Semi-transparent upper panels with mesh base block splashes and debris, protecting operators in machine tool workshops.
Storehouse
Combination of frosted panels and mesh provides a clear view of operations while separating production lines for safety and efficiency.
Detailed Installation Process for Acrylic & Welded Type
The installation of upper-acrylic lower-mesh partition fence follows standardized steps to protect acrylic panels from cracking and guarantee overall stability:
● Step 1: Mark upright post positions strictly following construction drawings and reserve gate openings as required.
● Step 2: Drill fixing holes on concrete floor or dig foundation pits on soft ground corresponding to post layout.
● Step 3: Secure posts via flange plates with expansion bolts; adopt cast iron weighted bases for non-drilling installation sites.
● Step 4: Align pre-assembled panels (upper acrylic + lower wire mesh) with posts and pre-fix by special matching U-type & spider clips.
● Step 5: Fasten all connectors with security bolts carefully; install color-matched hinges, latches or slide tracks when access gates are needed.
● Step 6: Inspect overall structural tightness, gate operating smoothness and check acrylic surface for crack or damage.
● Step 1: Mark upright post positions strictly following construction drawings and reserve gate openings as required.
● Step 2: Drill fixing holes on concrete floor or dig foundation pits on soft ground corresponding to post layout.
● Step 3: Secure posts via flange plates with expansion bolts; adopt cast iron weighted bases for non-drilling installation sites.
● Step 4: Align pre-assembled panels (upper acrylic + lower wire mesh) with posts and pre-fix by special matching U-type & spider clips.
● Step 5: Fasten all connectors with security bolts carefully; install color-matched hinges, latches or slide tracks when access gates are needed.
● Step 6: Inspect overall structural tightness, gate operating smoothness and check acrylic surface for crack or damage.
Your Trusted Partner for Acrylic & Welded Type
- High Protection: Lower welded wire mesh blocks heavy equipment impact while upper transparent acrylic prevents flying splashes and small workpiece spillage, double-layer structure improves overall workshop safety against collision and debris splash hazards.
- Long-lasting Anti-corrosion: Dual treatment of hot-dip galvanizing (≥80μm) and powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years; acrylic sheet features excellent anti-aging performance for long-term indoor use.
- Stable Structure: Integrated framed structure with split upper acrylic & lower mesh layout distributes impact force evenly; tight bolted & clipped connection avoids plate loosening or acrylic crack for long-term stable service.
- Easy Installation: Fully standardized prefabricated parts. Single-person installation cuts working time by 50%, saving labor and cost for workshop zoning construction.
- Good for Workshop Management: High light transmittance from transparent acrylic keeps indoor brightness and reduces lighting power consumption; clear visual access supports real-time cross-zone production monitoring.
- Safety & Compliance: Comply with GB/T 3091-2015. Smooth deburred metal edges and polished acrylic borders prevent scratches and help pass factory safety inspections.
