BENDIN400-Aisle Type
- Reliable Passage Protection: Lightweight robust mesh-frame structure ensures effective corridor separation, fall prevention and pedestrian safety protection.
- Solid Welded Structure: Premium low-carbon steel wire & solid steel frame with tight welding for stable long-lasting build.
- Excellent Anti-Rust & Wear Resistance: Hot-dip galvanized, PVC coated or spray coated finishes for superior rust & abrasion resistance for indoor factory corridors.
- Modular & Cost-Effective: Modular construction enables fast on-site assembly and flexible layout, cutting labor cost and shortening installation cycle.
Product Speciffcations

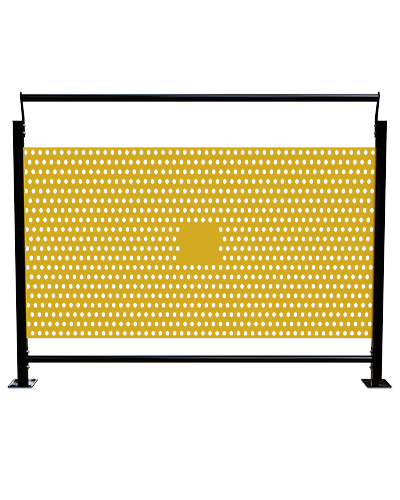

Aisle Type Mesh Panel Specifications
| Parameter | Standard Specifications |
|---|---|
| Panel Size (H×W) | 0.6m–3.0m (any size) |
| Mesh Type | Full mesh / Full perforated, Mesh top + perforated bottom |
| Mesh Opening | 50×50mm, 60×60mm / 20×100mm, 50×100mm |
| Perforation | Round 6–8mm / Square, slotted holes |
| Wire / Plate Thickness | Wire:4.0mm; Plate:1.0–1.2mm / Wire:3.0–6.0mm; Plate:0.8–2.0mm |
| Frame Tube | 20×30mm / 20×20mm, 30×30mm square tube |
| Surface Treatment | Powder coating / PVC coated, Galvanized + coating |
| Color | Yellow(RAL1023), Black, Gray / Blue, White, Custom RAL |
Available Post Systems
Aisle Type Post Specifications
| Square Post | Specification |
Hole Size | 50×50mm / 60×60mm / 80×80mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Special Accessories
- Aisle Type
1. Aisle-to-Post Connection Components
- Spider Clips / U-type Holding Clips: Special galvanized/black coated metal clips to fasten aisle mesh panels onto upright posts for quick assembly.
- Security M6/M8 Bolts + Lock/Flat Washers: Anti-tamper bolts paired with lock washers to stop loosening caused by frequent aisle passing vibration.
- L-shaped Angle Brackets: Auxiliary connectors for reinforcing frame corner and wall-mounted fixing at aisle ends.
- Self-tapping Screws: Used to fix border square tube and inner auxiliary sheet.
2. Floor Fixing Components
- Expansion Bolts M12×100: Fix post flange base to concrete floor, 4 sets for each upright post.
- Cast Iron Weighted Base: Heavy counterweight base for drill-free temporary aisle separation layout.
- Ground Angle Fixed Plate: Extra floor bracket for high-traffic aisle to enhance anti-collision stability.
3. Optional Gate Accessories
Swing Gate (Aisle Single/Double Door)
- Heavy-duty Bolt-on Hinges: Thickened load-bearing hinges for frequent open-close aisle swing gates.
- Spring Drop Bolts & Lock Hasps: Top & bottom latch bolts plus lock catch for padlock mounting.
- Edge Anti-collision Rubber Stoppers: Protect gate and aisle passing vehicles from impact damage.
Sliding Gate (Wide Aisle Access)
- Top & Bottom Slide Guide Tracks: Custom long rails matching aisle width for sliding movement.
- Hanging Pulleys & Ground Rollers: Load-bearing wheel sets for smooth frequent sliding.
- Travel Limit Stoppers: Block parts to avoid gate slipping out from track ends.
4. Other Auxiliary Accessories
- Post Caps: Plastic/galvanized steel caps for post top anti-rust protection.
- Anti-slip Rubber Pads: Cushion pads under post base to prevent floor scratch and sliding.
Applications of Aisle Type
Wheeled perforated panels: fast, flexible work zone partitioning, ideal for dynamic factories & temporary barriers.

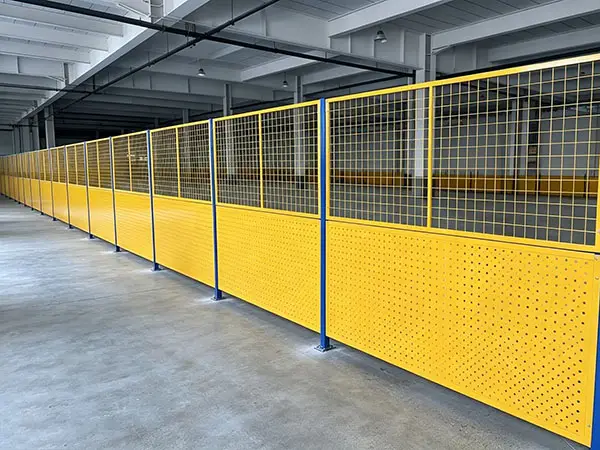

Alternating yellow and grey perforated panels enhance visibility, creating clear safety boundaries in industrial facilities.
Black-framed modular perforated fence allows for custom layouts, offering both airflow and visual separation in large production areas.

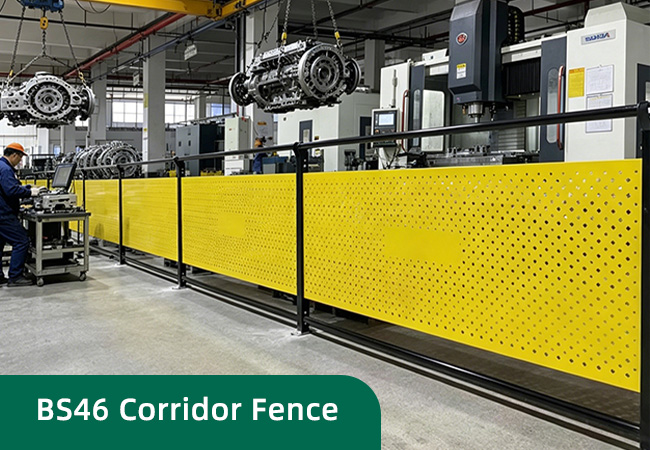

Continuous yellow perforated panels provide high visibility and full debris containment, suitable for machinery and hazardous area isolation.
Detailed Installation Process for Aisle Type
The installation of corridor workshop fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and practicality of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
● Step 1: Mark upright post positions along aisle route per design drawings, reserve proper passing width for vehicles and staff.
● Step 2: Drill mounting holes on concrete floor or dig foundation pits for soft ground according to post layout.
● Step 3: Secure posts via flange plates with expansion bolts; adopt weighted cast iron bases for non-drilling installation sites.
● Step 4: Align prefabricated fence panels with upright posts and temporarily fix with special U-type & spider clips.
● Step 5: Fasten all connections with security bolts; install hinges, latches or slide tracks if aisle access gate is required.
● Step 6: Inspect overall structural stability, fastener tightness and gate opening flexibility, confirm smooth aisle clearance.
Your Trusted Partner for Aisle Type
- High Protection: Optimized aisle-focused structural design stands frequent forklift & pedestrian impacts, effectively separating walkways from production zones to avoid accidental cross-area safety incidents.
- Long-lasting Anti-corrosion: Dual treatment of hot-dip galvanizing (≥80μm) and powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years under high-traffic workshop environment.
- Stable Structure: Reinforced frame & dense panel layout disperse collision force evenly; sturdy clip-bolt connection prevents shifting even with long-term continuous passing.
- Easy Installation: Fully standardized prefabricated parts. Single-person installation cuts working time by 50%, saving labor and cost for long linear aisle layout.
- Good for Workshop Management: Reserved standardized gate positions match different aisle widths; clear partition clarifies personnel/vehicle travelling route for orderly on-site management.
- Safety & Compliance: Comply with GB/T 3091-2015. Smooth deburred edges prevent scratches and help pass factory safety inspections smoothly.
