BDINDUSTRIAL delivered a full set of all perforated type industrial safety fence for a large automated manufacturing plant in Southeast Asia, solving the client’s tricky safety and ventilation challenges. The factory ran multiple robotic welding stations and automated assembly lines. Their original welded mesh fence brought dust buildup issues and could not block flying metal splashes during welding. The client needed a sturdy partition barrier that keeps staff away from moving robots, maintains air circulation, and cuts down splash risks. After evaluating several options, they chose BDINDUSTRIAL’s all perforated panel safety fence as the final solution.
Client Background & Project Challenges
The plant covers over 12,000 square meters, with 14 robotic work cells running 2 shifts every day. The facility manager listed three key problems they needed to fix.
Safety risks from welding splashes
The existing wire mesh guards could not stop tiny metal sparks and debris from passing through, which created fire risks and damaged nearby cables. Solid steel panels were rejected because they trapped heat and blocked air circulation.
Poor site visibility and inspection
Operators needed to check machine status without opening safety gates. Fully solid panels blocked sightlines, while traditional mesh easily caught dust and became hard to clean.
On-site layout adjustment requirement
The factory planned to add two new production lines within 18 months. The safety fence system had to be modular, easy to disassemble and reposition without heavy cutting work.
BDINDUSTRIAL Custom Solution for All Perforated Safety Fence
Our engineering team reviewed the site drawings and measured each work zone before finalizing panel specs. We selected 2.0mm thick Q235 steel perforated panels with 8mm round staggered holes, framed by rectangular steel tubes. The whole set received powder coating finish in safety yellow RAL1023.
Panel and structural details
Each perforated panel came with welded steel frame. The hole size was carefully calculated to prevent fingers reaching through, matching local industrial safety standards. We added heavy base plates for posts, and fitted hinged safety access gates with safety interlock options for robot zones.
On-site installation arrangement
BDINDUSTRIAL supplied complete prefabricated panels, posts, bolts and accessories. Local installers assembled the fence on site, no on-site welding required. The installation was scheduled during weekend downtime to avoid interrupting normal production. The whole project finished within 7 days.
Project Outcomes After Installation
After the perforated safety fence went live, the factory noticed clear improvements in daily operation.

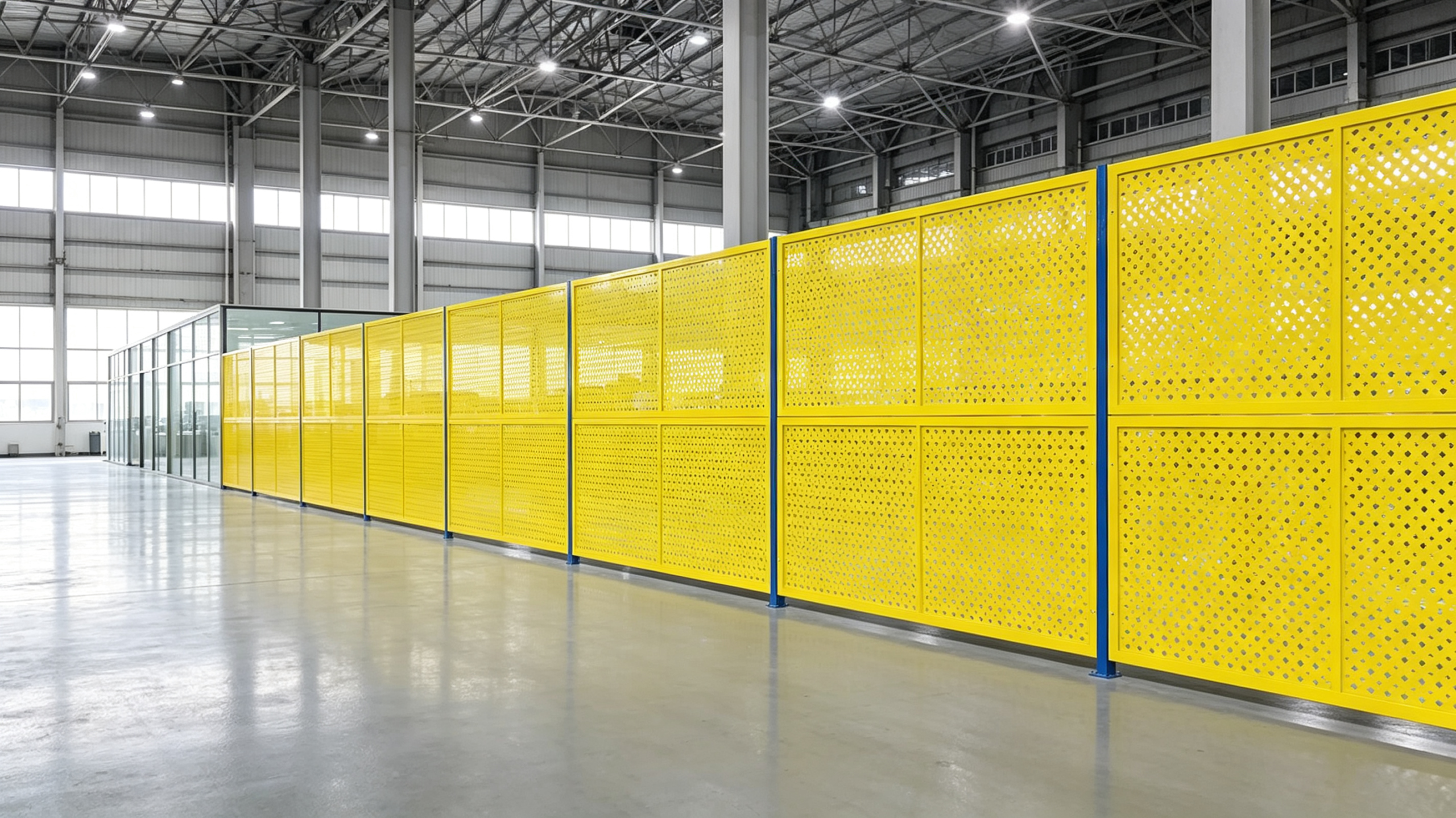

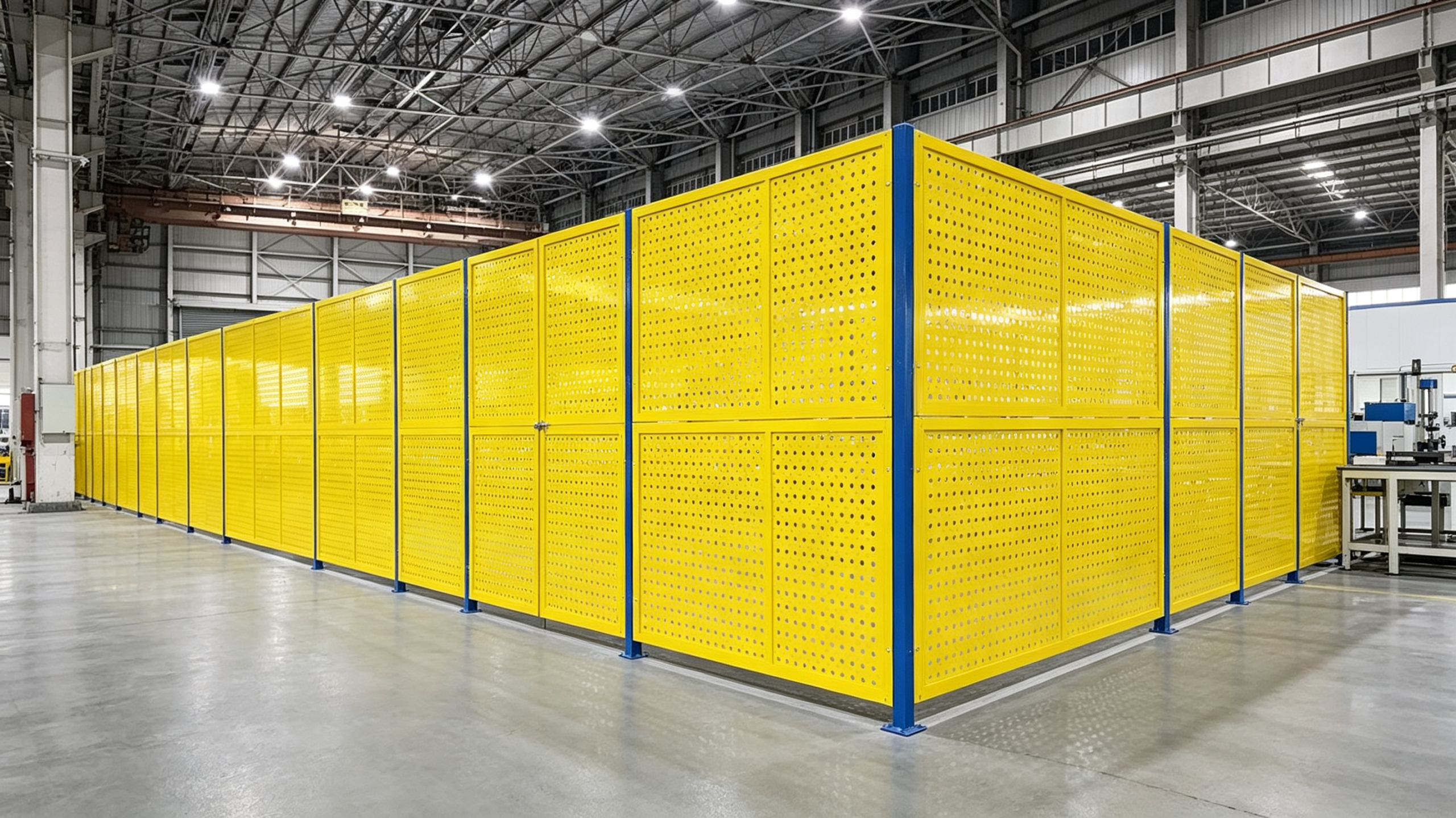

The perforated panels block welding splashes and flying debris effectively, while still allowing airflow to release machine heat. Dust no longer accumulates quickly on the surface, making daily cleaning much simpler. Supervisors can observe robot operation through perforations without opening gates. The modular structure also leaves room for future line expansion. The plant’s safety audit passed smoothly after the project. The facility manager commented that this perforated safety fence balances protection, ventilation and practicality better than regular welded mesh fencing.
Final Thoughts
All perforated type industrial safety fence works well for robotic workshops, welding stations and production zones where splash protection and airflow are required. This real case proves perforated panels can deliver reliable safety isolation while keeping convenient visual inspection. If you plan perforated industrial safety fence projects for your factory or warehouse, contact BDINDUSTRIAL. We provide custom hole patterns, panel sizes, surface finishes and layout design service for your industrial guarding project.
FAQ
What is the main advantage of all perforated type industrial safety fence compared with welded mesh fence? All perforated safety fence uses solid punched steel sheets. It offers better resistance against flying debris, sparks and splashes. It still keeps airflow and partial visibility, and the smooth panel surface collects less dust than wire mesh, which suits welding, grinding and robot workshops. Welded mesh is more suitable for general warehouse separation without splash hazards.
Can BDINDUSTRIAL customize hole size and hole pattern for perforated safety panels? Yes. We can adjust round holes, square holes or slotted holes with different diameters and open area ratios. Our engineers will suggest proper hole sizes according to safety regulations to prevent finger access, based on your application environment.
Is perforated industrial safety fence hard to install and relocate? BDINDUSTRIAL’s perforated safety fence adopts modular bolted structure. All panels are prefabricated. You can assemble, take apart and move sections when your production layout changes. No welding on site is needed for normal installation.
What surface finishes are available for perforated industrial safety fence panels? We offer hot-dip galvanizing and powder coating options. Hot-dip galvanizing performs better for humid or corrosive environments. Powder coating supports many RAL colors, and the coating resists scratches and dust sticking for indoor factories.
Does perforated safety fence meet global machine safety standards? Our perforated safety fence is designed referring to common industrial machine guarding requirements. We can provide technical data sheets for your safety audit. You just need to share your target region and site hazard conditions, BDINDUSTRIAL will adjust panel thickness and hole specs accordingly.
