Customer Background
The customer is a professional industrial manufacturing enterprise focusing on welding processing, metal fabrication and mechanical equipment production. The workshop contains a large number of manual welding stations and robotic welding production lines. Welding operation will produce strong arc light, ultraviolet radiation, welding spatter and high-temperature metal debris, which easily cause visual interference and surface damage to adjacent stations and equipment.
Traditional full-mesh fences cannot block strong welding arc light and high-temperature splashes, while fully closed partitions affect workshop ventilation and equipment heat dissipation. In order to realize arc light shielding, splash prevention, ventilation guarantee and standardized station isolation, the customer adopted BDINDUSTRIAL Arc Light Plate Workshop Safety Fence (Upper Arc Plate + Lower Mesh) for overall workshop safety upgrading and station zoning optimization.
Project Requirements
Aiming at the special high-risk working environment of welding workshops, the customer put forward targeted professional protection requirements for isolation facilities:
- Professional Arc Light Shielding：Effectively block strong welding arc light and ultraviolet radiation to protect operators’ eyes and avoid cross-station light interference.
- High-temperature Splash Resistance：Resist welding spatter and high-temperature debris impact to prevent equipment surface scalding and fire hazards.
- Ventilation & Heat Dissipation：Ensure smooth air circulation in the welding area, reduce high-temperature accumulation and exhaust welding smoke efficiently.
- Safety Station Isolation：Divide independent welding operation areas to prevent irrelevant personnel from entering high-temperature operation zones by mistake.
- Impact Resistant & Durable：Adapt to long-term high-temperature, splash and vibration workshop environment without deformation and damage.
- Standardized On-site Management：Neat and unified appearance to assist workshop 5S standardized management and safety production specification.
BDINDUSTRIAL Custom Arc Light Plate Fence Solution
According to the personalized protection needs of welding workshops, the technical team of BDINDUSTRIAL customized a exclusive Upper Arc Light Plate + Lower Mesh composite safety fence solution. The upper special anti-arc light plate shields strong ultraviolet arc light and high-temperature splashes, while the lower high-strength welded mesh ensures ventilation, heat dissipation and structural firmness. The composite structure perfectly solves the protection pain points of traditional single-type fences. The detailed specification parameters are as follows:
Configuration Item | Specification Parameters | Core Product Advantages |
|---|---|---|
Overall Height | 2.0m | Standard industrial safety height, effective anti-climbing, meeting welding station isolation safety standards |
Upper Arc Light Plate | High-density Anti-arc Light PVC Plate | Professional anti-ultraviolet performance, fully shield welding arc light; high-temperature resistant, anti-spatter, no burning damage |
Lower Welded Mesh | 4.0mm Wire Diameter, 50×50mm Mesh | High-strength full-welded structure, strong impact resistance, good air permeability for smoke exhaust and heat dissipation |
Frame & Column | 60×60mm Square Tube | Reinforced integral frame, high structural stability, anti-vibration and anti-impact, durable for long-term welding workshop use |
Surface Treatment | Hot-dip Galvanizing + Electrostatic Powder Coating | Double anti-corrosion process, anti-high temperature oxidation, anti-rust and easy to clean |
Supporting Accessories | Safety Access Door, Safety Warning Signs | Convenient for equipment maintenance and personnel access, clear regional safety division |
On-Site Installation & Operation Effect
Before Installation
The welding workshop adopted ordinary mesh isolation fences. The open structure could not block strong welding arc light, resulting in mutual light interference between adjacent stations, which affected operators’ vision and easily caused eye fatigue. Welding spatter and high-temperature debris splashed randomly across zones, causing potential risks of equipment scalding and workshop safety hazards. The workshop had poor ventilation and disorderly station division, restricting standardized safety production management.
After Installation

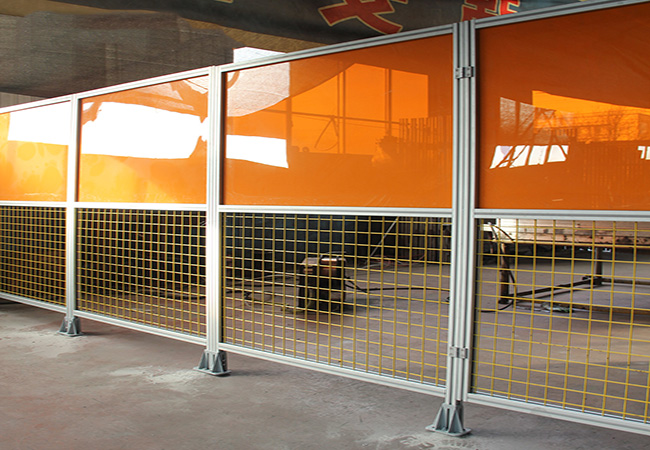

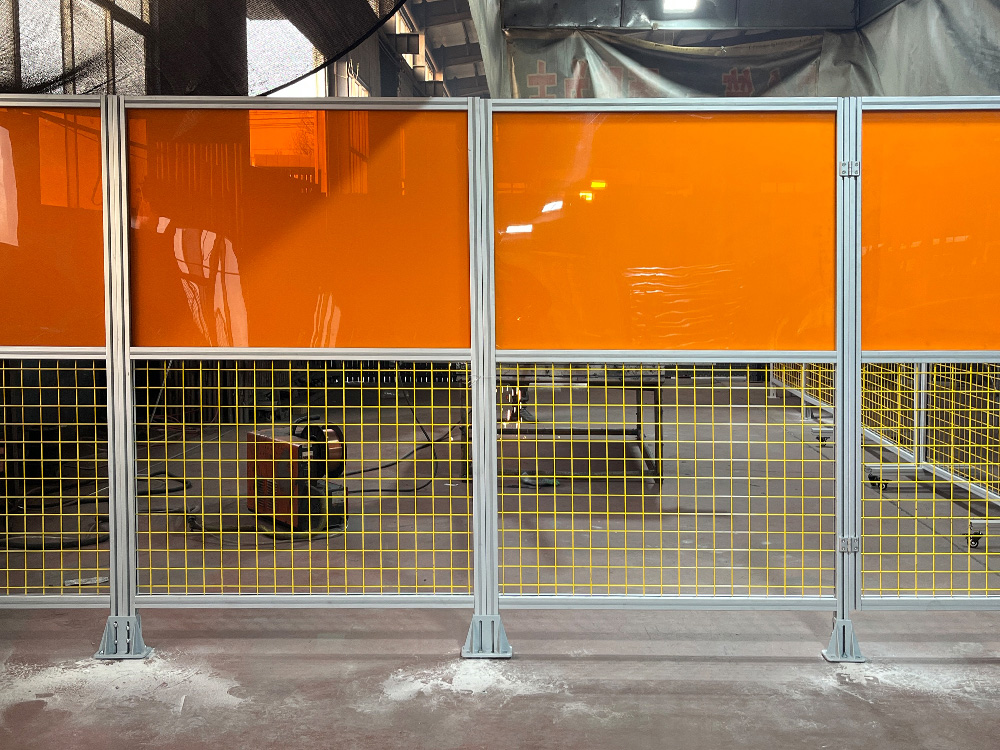

After installing BDINDUSTRIAL Arc Light Plate Workshop Safety Fence, the workshop realizes independent closed isolation of each welding station. The upper professional arc light plate effectively isolates welding strong light and ultraviolet radiation, completely solving the problem of cross-station light interference and protecting the occupational health of operators.
The arc-resistant plate can effectively resist high-temperature welding spatter without burning or aging. The lower mesh structure maintains excellent air permeability, accelerates welding smoke discharge and workshop heat circulation, and avoids the stuffy environment of fully closed baffles. The overall fence structure is stable and neat, the workshop station division is standardized, the safety hazard rate is greatly reduced, and the overall safety production management level is comprehensively improved.
Customer Evaluation
“BDINDUSTRIAL’s arc light protection fence is highly targeted for welding workshop scenarios. It perfectly blocks welding arc light and splashes, while ensuring good workshop ventilation. The product is sturdy and durable, with stable protective performance, which greatly optimizes our on-site operating environment and safety management system.”
—— Workshop Safety Management Supervisor
Case Summary &Product Advantages
This project fully verifies the professional application value of BDINDUSTRIAL Arc Light Plate Workshop Safety Fence in welding workshops, metal fabrication stations and high-temperature operation workshops. Different from ordinary isolation fences, it focuses on core protection functions such as arc light resistance, ultraviolet isolation and high-temperature splash prevention.
The innovative composite structure combines professional safety protection and environmental ventilation, making up for the single function defect of traditional isolation products. With stable structure, high temperature resistance and durable protection performance, it is the most suitable professional safety isolation solution for standardized welding workshops and industrial high-temperature operation stations.
