BENDIN800-Arc Light Panel（Aluminum Alloy）
- Arc Shield Reinforced Structure: Unique arc shielding design plus firmly welded low-carbon steel mesh boosts compression resistance to avoid panel deformation or collapse.
- Solid Welded Stability: Premium low-carbon steel with tight welding delivers robust overall structure and tidy industrial-looking isolation performance.
- Multi-layer Anti-corrosion Treatment: Available in hot-dip galvanized, powder or PVC/PE coating for outstanding rust & abrasion resistance and long service life.
- Modular Quick Installation: Pre-made modular panels & matching posts enable welding-free assembly to cut labor expense and shorten construction period.
Product Speciffcations
Arc Light Panel（Aluminum Alloy） Mesh Panel Specifications
| Parameter | Standard Specifications |
|---|---|
| Panel Size (H×W) | 0.6m–3.0m custom size |
| Upper Arc Light Board | Arc top, PC / acrylic light board / Logo, warning text, transparent |
| Lower Mesh Panel | 50×50mm, wire dia.4.0mm / 50×100mm, 60×60mm |
| Frame Tube | 20×30mm square tube / 20×20mm, 30×30mm |
| Surface Treatment | Powder coating / Galvanized + powder coating |
| Color | Yellow(RAL1023), Black, Gray / Blue, White, Custom RAL |
Available Post Systems
Arc Light Panel（Aluminum Alloy） Post Specifications
| Square Post | Specification |
Hole Size | 40×40mm / 50×50mm / 60×60mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Special Accessories
- Arc Light Panel（Aluminum Alloy）

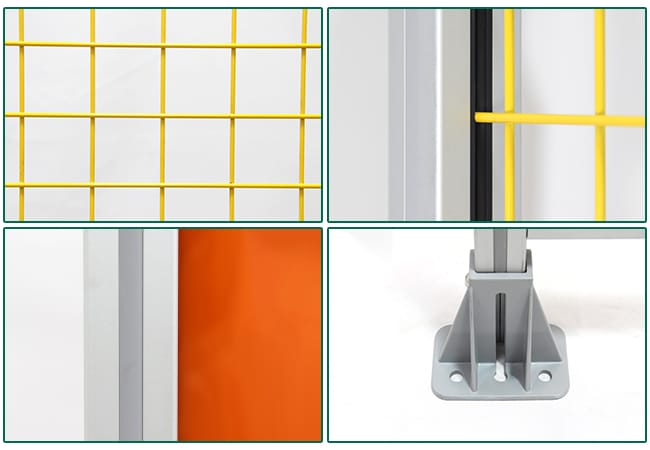

1. Mesh-to-Post Connection Components
- Spider Clips: Black metal clips to fasten lower wire mesh and upper arc light plate onto support upright posts.
- Security Bolts & Matching Nuts: Galvanized bolt & nut sets for locking clips and frame components firmly.
2. Optional Gate Accessories
- Swing Gate Hinges: Two-color coated metal butt hinges for hinged swing gates.
- Sliding Gate Roller Assemblies: Four-wheel pulley roller fittings for sliding gate smooth movement.
3. Auxiliary Parts
- Black Plastic Post Caps: End caps for sealing post top to prevent dust and corrosion.

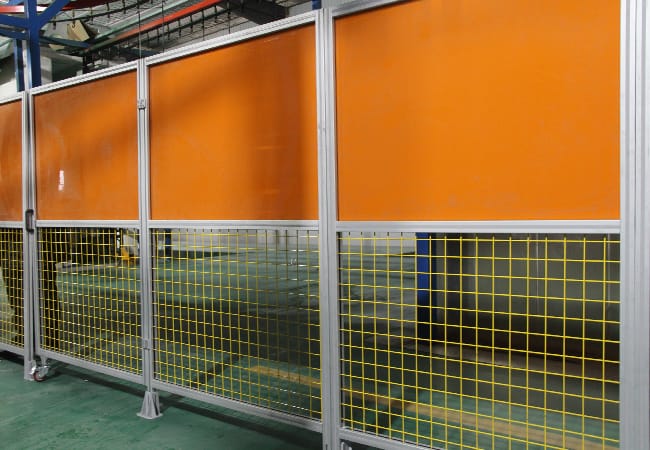

Applications of Arc Light Panel（Aluminum Alloy）

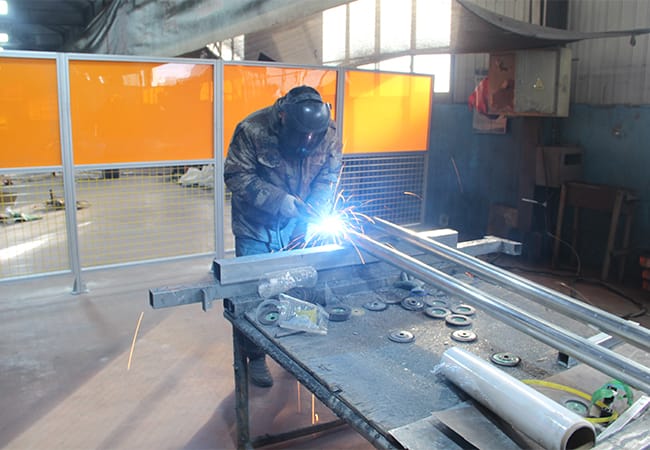

Bright orange welding screen with mesh base blocks harmful sparks and UV light, protecting workers in adjacent work zones.

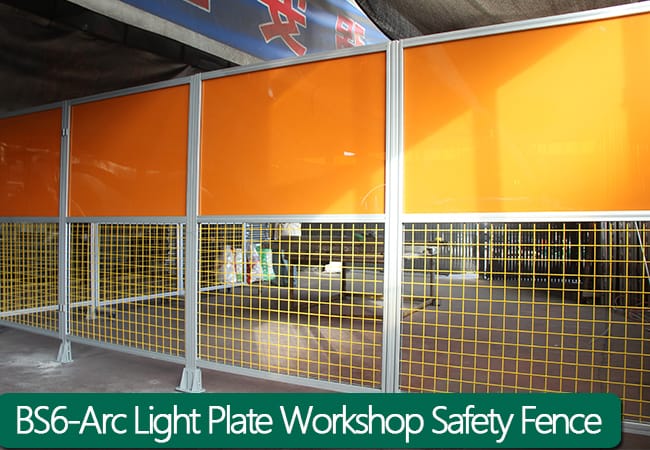

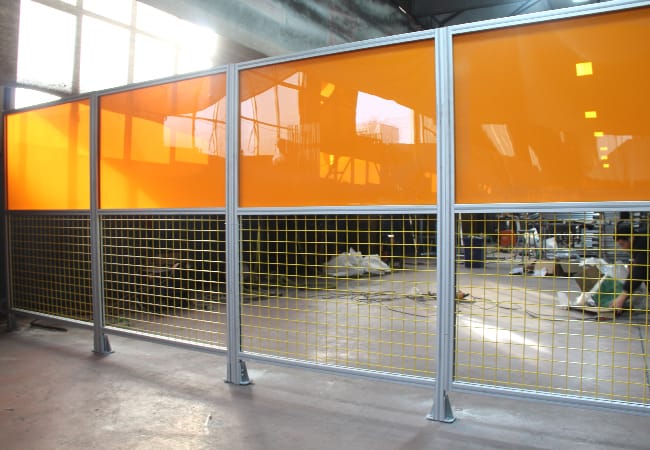

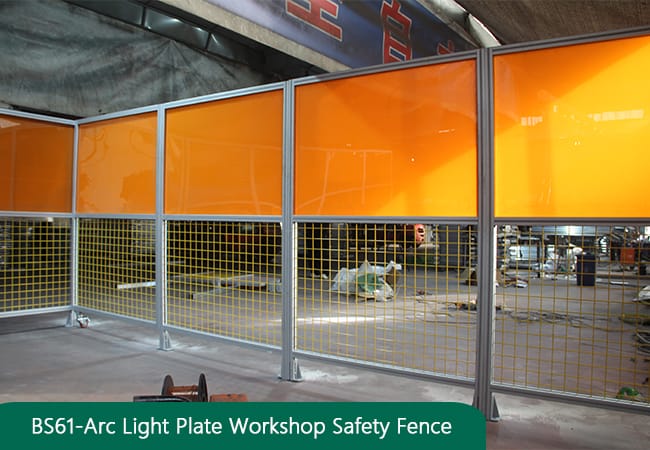

Modular welding safety fence with semi-transparent panels prevents arc flash hazards, suitable for factory welding bays.
Flame-retardant welding screen paired with a metal frame, offering reliable protection for on-site welding operations.

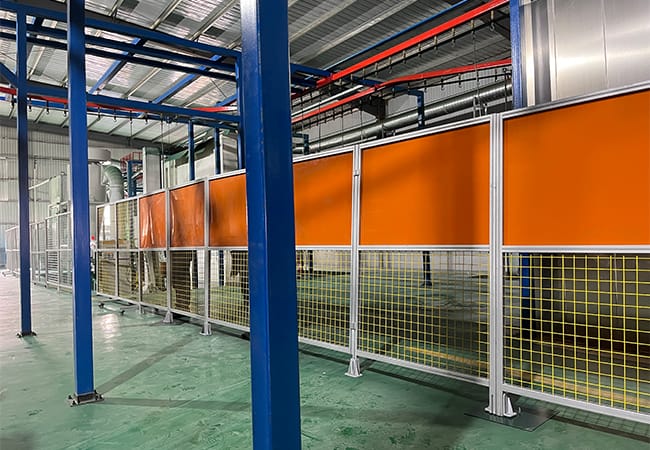

Durable welding safety partition clearly defines welding areas, containing sparks and improving workplace safety management.
Detailed Installation Process for Arc Light Panel（Aluminum Alloy）
The installation of upper arc light plate plus lower wire mesh safety fence follows standardized procedures to guarantee structural firmness and arc splash blocking effect:
● Step 1: Survey the site and mark installation routes for vertical posts in line with layout plans, aside reserved space for access gate setup.
● Step 2: Complete ground drilling for concrete ground or foundation digging on soft terrain, then fix upright posts by expansion bolts or non-drilling counterweight bases.
● Step 3: Put combined panels (top arc light plate + bottom welded mesh) against installed posts and temporarily lock using special spider clips.
● Step 4: Tighten all connecting fittings with matched bolt & nut sets; install hinges for swing gates or sliding wheel parts as required.
● Step 5: Carry out full inspection of fence stability and gate smooth running, then attach plastic end caps on the top of each post.
Your Trusted Partner for Arc Light Panel（Aluminum Alloy）
- High Protection: Combined structure of upper arc light plate and lower welded mesh effectively blocks arc spark splashing and mechanical collision, double protection safeguards operators and surrounding workshop equipment.
- Long-lasting Anti-corrosion: Dual treatment of hot-dip galvanizing (≥80μm) and powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years under welding workshop harsh environment.
- Stable Structure: Split upper-plate lower-mesh layout distributes impact force evenly; firm spider clip & bolt connection prevents plate loosening or shifting for long-term stable use.
- Easy Installation: Fully standardized prefabricated parts. Single-person installation cuts working time by 50%, saving labor and cost for workshop zoning construction.
- Good for Workshop Management: Moderate light transmission of arc panel balances brightness and arc shielding; transparent lower mesh supports real-time production observation for standardized workshop management.
- Safety & Compliance: Comply with GB/T 3091-2015. Smooth deburred edges prevent scratches and help pass factory regular safety inspections.
