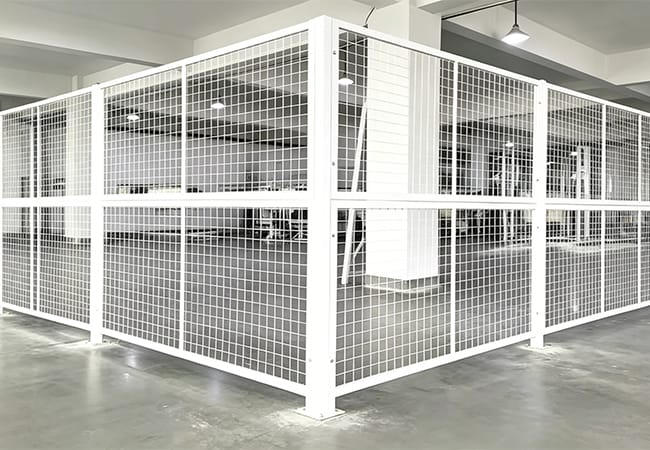

BENDIN100-All Welded Type
- Structure & Performance: Modular welded mesh design, high stability, good ventilation and visibility, effectively dividing spaces. Rigid frame prevents deformation.

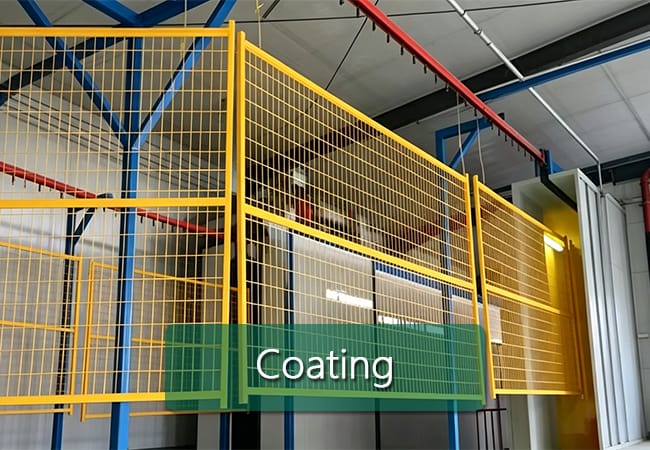

- Surface Treatment: Available with electro galvanized, hot-dip galvanized, PVC coated and spray painted finishes, featuring strong anti-corrosion, anti-rust and wear resistance.
- Installation: Modular structure allows quick assembly and flexible combination, saving labor and installation time.
- Application: Durable and cost-effective. Widely used for workshop partitioning, warehouse isolation, equipment protection and safety enclosures in industrial areas.
Product Speciffcations

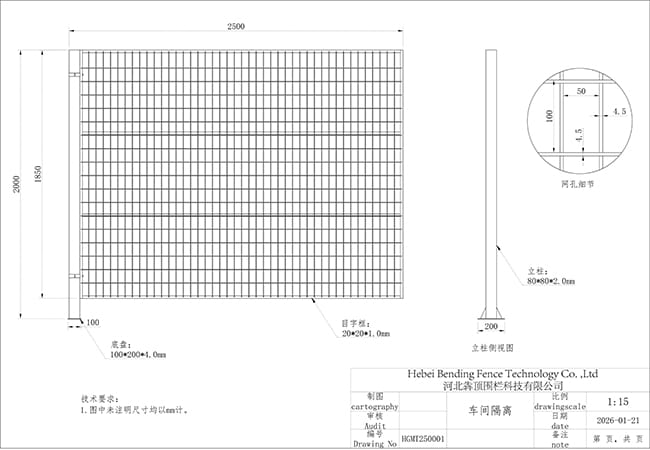

All Welded Type Mesh Panel Speciffcations
| Parameter | Standard Specifications |
| Panel Size (HxW) | 1.5m×2.0m, 1.8m×2.5m, 2.0m×3.0m / 0.6m-3.0m (any size) |
| Mesh Opening | 50×50mm, 60×60mm / 20×100mm, 50×100mm |
| Wire Diameter (after coating) | 4.0mm / 3.0-6.0mm |
| Tube Thickness | 1.0mm, 1.2mm / 1.5mm, 2.0mm |
| Surface Treatment | PVC Coated, Powder Coated / Galvanized + PVC Coated |
| Color | Yellow, Black, Grey / Blue, White, Dual Color |
Available Post Systems
All Welded Type Post Specifications
| Square Post | Specification |
Hole Size | 50×50mm / 60×60mm / 80×80mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Security Accessories & Extensions
1. Mesh-to-Post Connection Components
- Spider Clips: Specialized metal clips for quick attachment of mesh panels to posts, enabling easy installation and removal.
- Security Bolts: Typically M8 size, with lock washers, to prevent tampering and loosening, used with clips or for direct connections.
- Lock/Seal Washers: Included with installation to prevent bolt loosening and enhance rust/water resistance.
2. Floor Fixing Components
- Expansion Bolts: Standard M12×100mm size, 4 sets per post, for securing flange plates to concrete floors.
- Embedded Components: Embedded steel plates/sleeves, used with concrete pouring for posts on soft/uneven ground.
- Weighted Bases: Cast iron or concrete counterweights (20–50kg), bolted to posts for temporary setups or floors where drilling is not allowed.
3. Optional Gate Accessories
- Gate Hinges: Weld-on or bolt-on hinges for single/double swing gates.
- Locks & Latches: Standard padlocks, security locks, or spring latches for securing gates.
- Roller Tracks & Wheels: Top/bottom rails and wheel assemblies for sliding gates.
- Gate Frame Tubing: Reinforced square tubing to prevent gate deformation.
4. Other Auxiliary Accessories
- Post Caps: Plastic or galvanized steel caps to cover post tops, preventing water entry and corrosion.
- Safety Markers: Reflective warning labels or safety signs for high-risk area barriers.
- Angle Brackets: For additional attachment to walls, machinery, or steel structures to improve stability.
Applications of All Welded Type

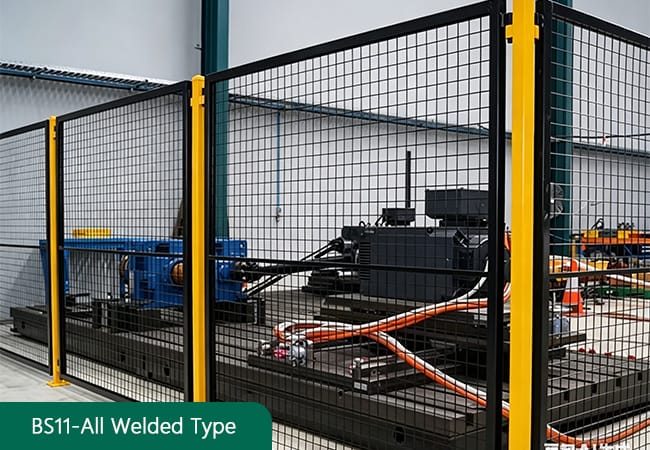

Isolate machinery to prevent contact with moving parts. Applied in Jinan plant, safety accidents reduced by 60%.

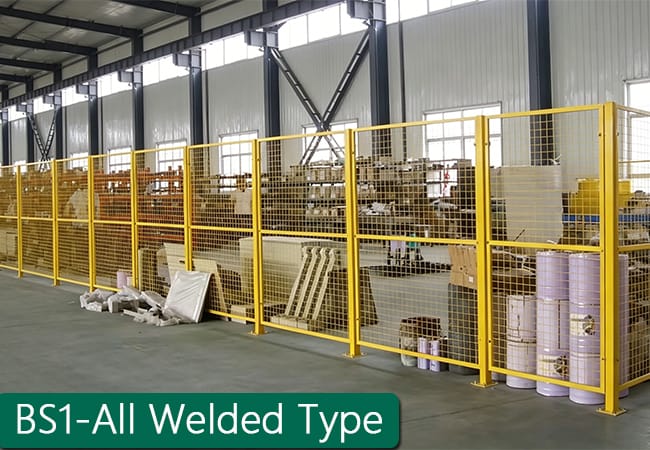

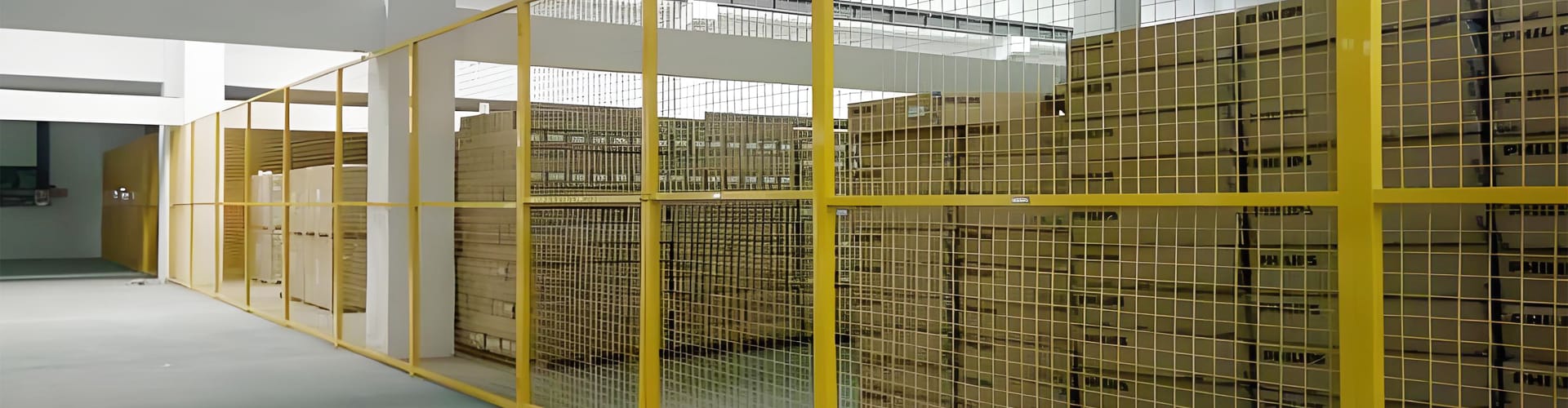

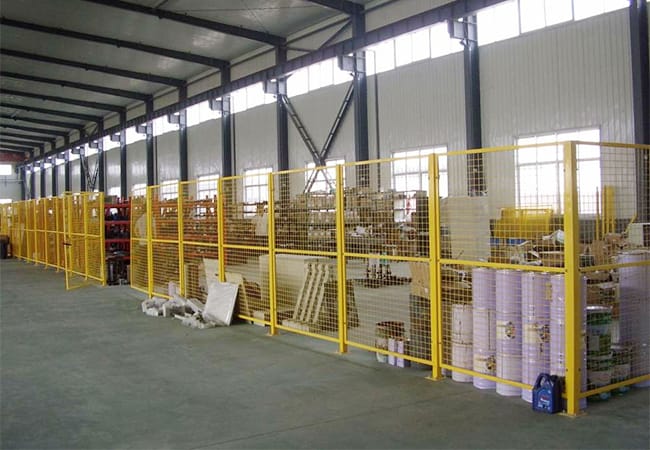

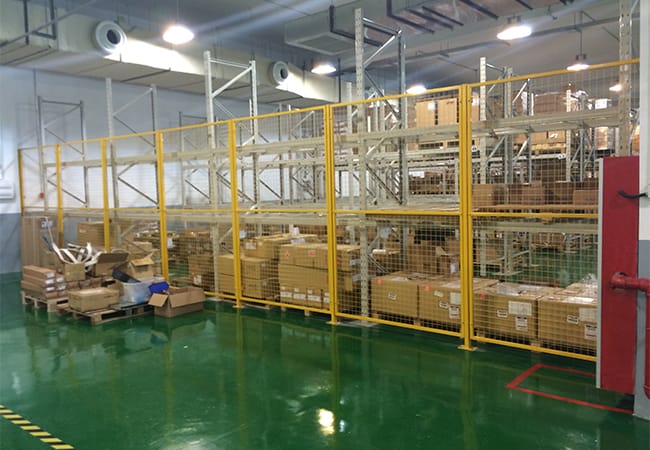

Partition storage areas and aisles. 2.8m fences separate cold & warm zones in Wuhan cold chain center.

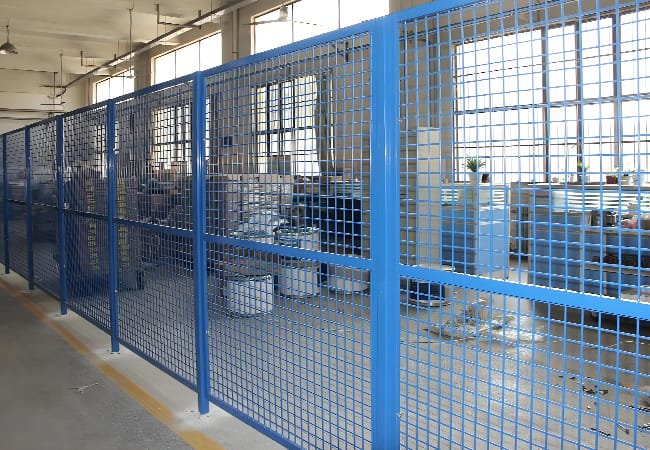

Separate production, storage, passage and hazardous areas to standardize workflows and raise efficiency.
Keep valuables, flammables, fragile items, raw and finished products apart against disorder and damage.
Detailed Installation Process for All Welded Type
The installation of mesh panel workshop fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and practicality of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:
● Step 1: Mark post positions as per design drawings.
● Step 2: Drill holes on concrete floor (or dig pits for soft ground) as per post dimensions.
● Step 3: Secure posts with flange plates + expansion bolts (concrete floor) or embed with concrete (soft ground).
● Step 4: Align mesh panels with posts and pre-fix using special clips
● Step 5: Fasten mesh firmly with security bolts; mount hinges/latches/tracks for gates if applicable.
● Step 6: Inspect overall stability, fastener tightness, and gate operation.
Your Trusted Partner for All Welded Type
- High Protection：3D welding delivers weld tensile strength over 400MPa, 40% higher than traditional welding. With impact resistance of 500N/m², it resists equipment collision and ensures personnel & equipment safety.
- Long-lasting Anti-corrosion：Dual treatment of hot-dip galvanizing (≥80μm) and powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years.
- Stable Structure：Full-mesh design bears force evenly for better wind and impact resistance. Firm bolted connection and anti-rust coating guarantee long-term stable use.
- Easy Installation：Fully standardized prefabricated parts. Single-person installation cuts working time by 50%, saving labor and cost.
- Good for Workshop Management：High light transmission reduces power consumption. Transparent mesh enables real-time on-site monitoring.
- Safety & Compliance：Comply with GB/T 3091-2015. Smooth edges prevent scratches and help pass safety inspections.
