BENDIN300-All Perforated Type

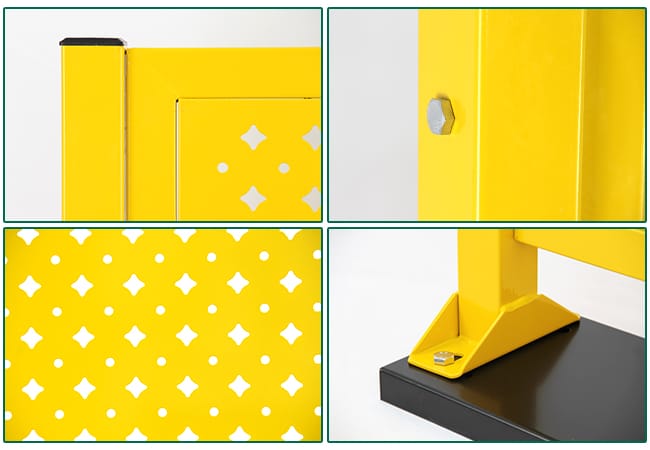

- Full Enclosed Panel Design: Rigid solid color steel panel forms full enclosure, efficiently blocks dust, noise and sight to eliminate workshop cross-interference.
- Superior Impact & Structural Stability: Premium color steel sheet plus solid steel frame for robust structure, outstanding anti-collision & deformation-proof performance.
- Excellent Anti-Corrosion Property: Galvanized, baking paint or electrostatic spraying surface treatment, long-lasting rust resistance for indoor factory & warehouse use.
- Cost-Effective & Modular Installation: Modular panel for quick onsite assembly & flexible layout, cuts labor cost and shortens construction period.
Product Speciffcations
All Perforated Type Mesh Panel Specifications
| Parameter | Standard Specifications |
| Panel Size (H×W) | 0.6m–3.0m (any size) |

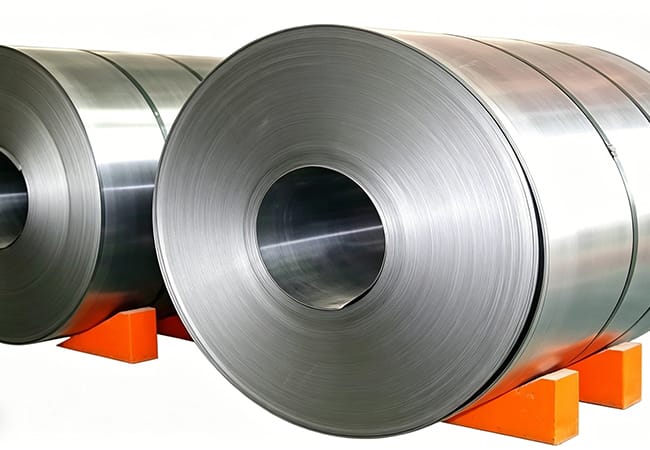

| Panel Material | Cold-rolled steel plate / Galvanized steel, stainless steel |
| Panel Thickness | 1.0mm, 1.2mm / 0.8mm–2.0mm |
| Perforation | Round holes 6mm, 8mm / Square, slotted, custom holes |
| Frame Tube | 20×30mm, 30×30mm / 20×20mm, 40×40mm square tube |

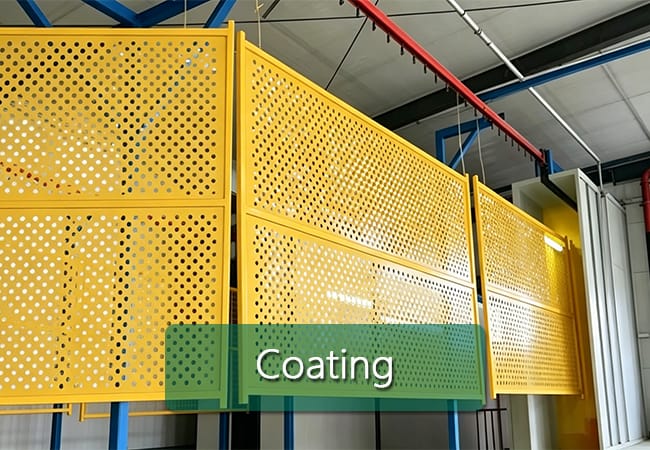

| Surface Treatment | Powder coating / Galvanized + powder coating |
| Standard Colors | Yellow(RAL1023), Black, Gray / Blue, White, Custom RAL |
Available Post Systems
All Perforated Type Post Specifications
| Square Post | Specification |
Hole Size | 50×50mm / 60×60mm / 80×80mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |

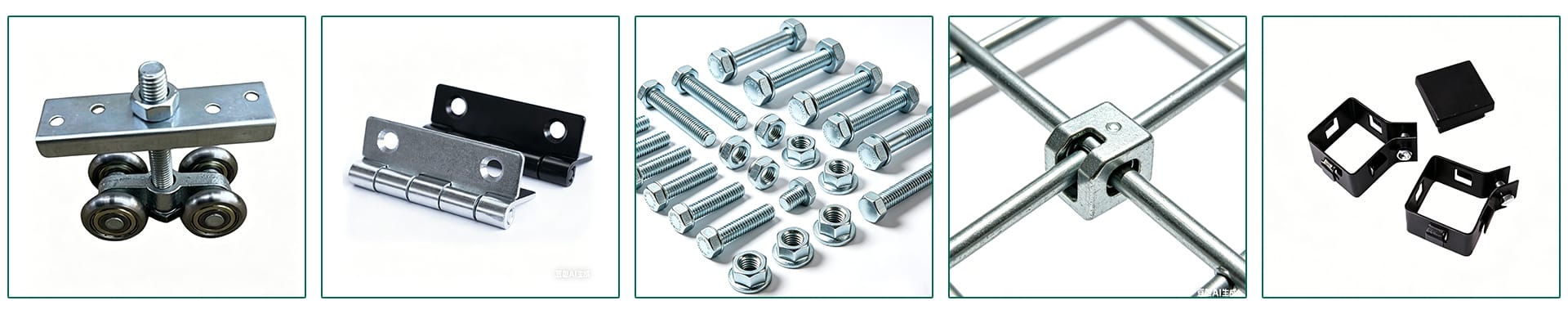

Special Accessories
- All Perforated Type
1. Mesh-to-Post Connection Components
- Spider Clips / U-type Hold Clips: Special black/zinc-coated metal clips for fastening full perforated sheet panels onto upright posts, quick locking without cutting holes on plates.
- Security Bolts (M6/M8) + Lock/Flat Washers: Anti-tamper bolts with lock washers, fix clips firmly and prevent loose from vibration.
- Self-tapping Screws: For inner fixing perforated plates to fence border square tubes.
- L-angle Bracket: Auxiliary fixing parts for plate and frame inner connection.
2. Floor Fixing Components
- Expansion Bolts M12×100: Secure post base flange onto concrete floor, 4 sets per post.
- Cast Iron Weighted Base: Drill-free heavy base for temporary movable full-perforated isolation fence.
3. Optional Gate Accessories
Swing Gate Parts
- Heavy-duty Bolt-on Gate Hinges: Thickened hinges for single/double swing full-plate gates.
- Spring Latches & Lock Hasps: Upper & bottom drop bolts plus lock catch for padlock installation.
- Rubber Bumpers: Anti-collision rubber plugs mounted on gate edge.
Sliding Gate Parts
- Top & Bottom Slide Tracks: Form sliding rail for full-perforated sliding gate.
- Hanging Rollers / Ground Wheels: Wheel assemblies fitted on gate frame for smooth sliding.
- End Limit Stops: Prevent sliding gate derailment.
4. Other Auxiliary Accessories
- Post Caps: Plastic/galvanized caps to seal post top against rain corrosion.
- Anti-slip Rubber Pads: Cushion under post base.
Applications of All Perforated Type

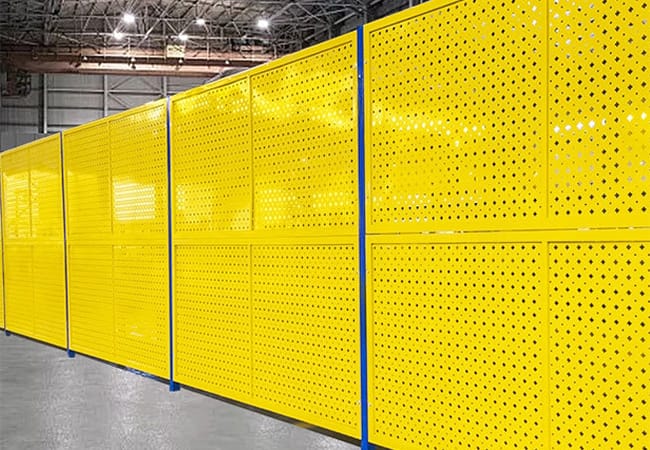

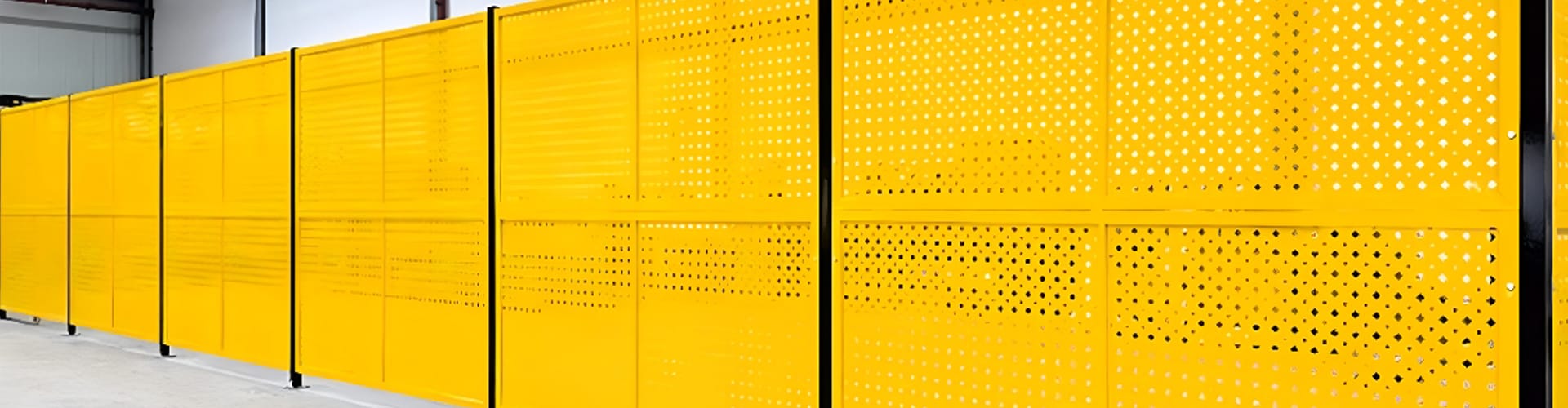

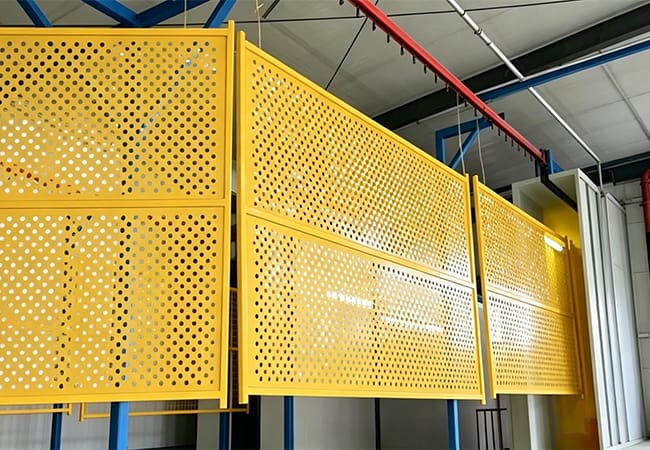

High-visibility yellow perforated panels provide clear safety zoning, offering both visibility and protection for industrial work areas.

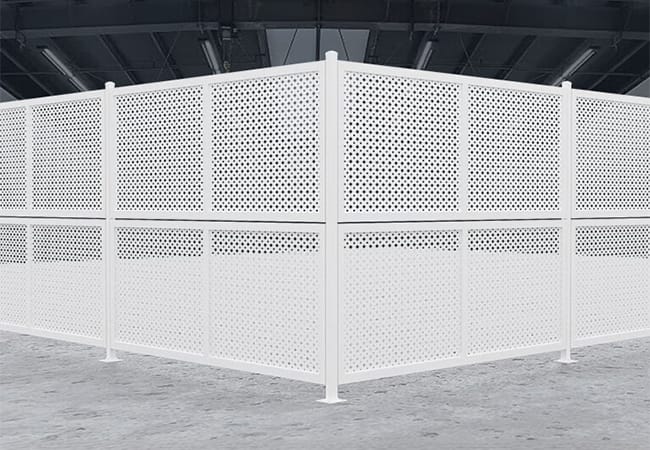

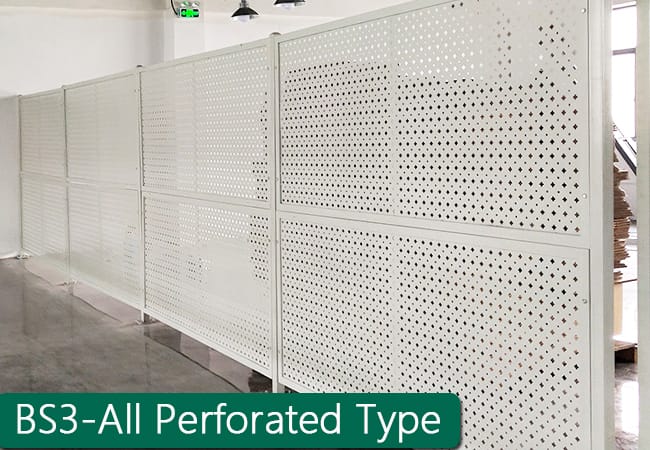

Smooth white perforated design creates a clean, modern look while allowing air circulation, ideal for office and clean room environments.

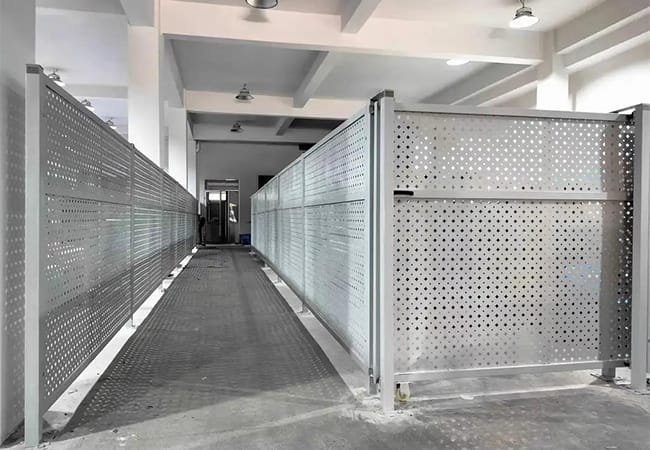

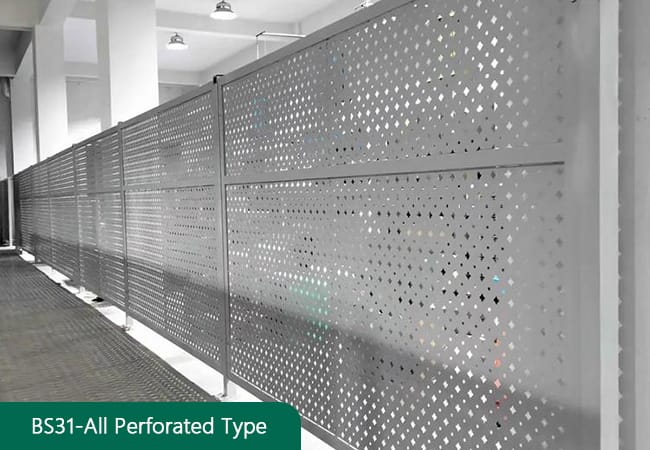

Silver galvanized perforated fence acts as a durable corridor barrier, guiding traffic flow and defining safe walkways in warehouses.

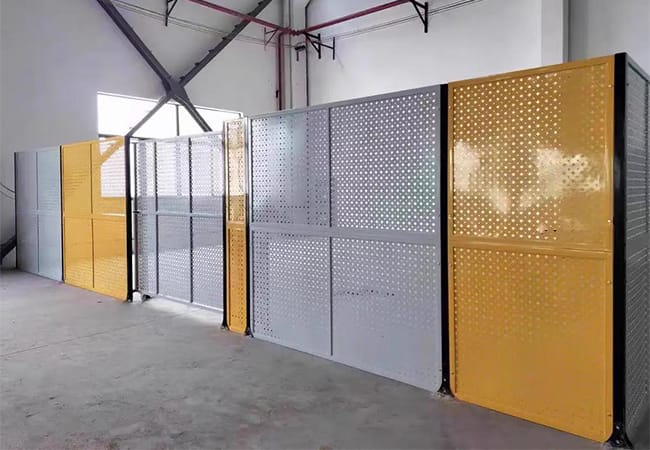

Versatile modular perforated panels in multiple colors allow custom layout designs, adaptable to various factory and production needs.
Detailed Installation Process for All Perforated Type
The installation of sheet workshop fence requires strict adherence to operational standards and detailed steps to ensure the overall stability, safety and practicality of the fence. Below is the expanded and detailed installation process, with in-depth explanations of each step, key points and precautions:

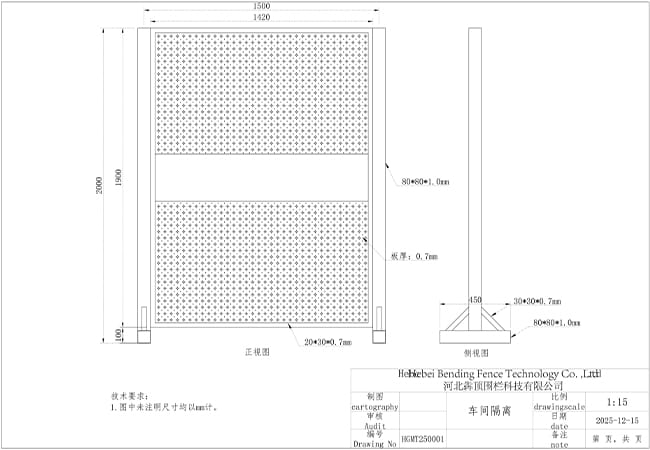

● Step 1: Mark all upright post installation positions strictly as per construction drawings.
● Step 2: Drill fixing holes on concrete ground; adopt pit excavation & concrete embedding for soft uneven ground.
● Step 3: Fasten posts with flange plates + expansion bolts, or fix with weighted cast iron bases for non-drilling floors.
● Step 4: Align prefabricated full perforated panels with posts and temporarily secure using special spider/U-type clips.
● Step 5: Fully lock panels with security bolts; install hinges, latches or sliding tracks if access gate is required.
● Step 6: Carry out overall inspection on structural stability, tightness of all fasteners and gate opening performance.
Your Trusted Partner for All Perforated Type
- High Protection: Solid full-perforated steel panel provides full-enclosed barrier against flying scraps, small parts dropping and forklift bump, effectively protecting personnel and equipment safety.
- Long-lasting Anti-corrosion: Dual treatment of hot-dip galvanizing (≥80μm) and powder coating (≥60μm). Over 1000-hour salt spray resistance, maintenance-free for more than 10 years.
- Stable Structure: Integrated framed perforated plate with uniform stress distribution, robust clip & bolt assembly avoids plate deformation for long-term stable service.
- Easy Installation: Fully standardized prefabricated panels and matching accessories. Single-person installation cuts working time by 50%, saving labor and cost.
- Good for Workshop Management: Moderate light transmission via regular round holes balances lighting & privacy; solid panel blocks dust splashing for neat workshop zoning.
- Safety & Compliance: Comply with GB/T 3091-2015. Deburred smooth plate edges prevent scratches and help pass factory safety inspections.
