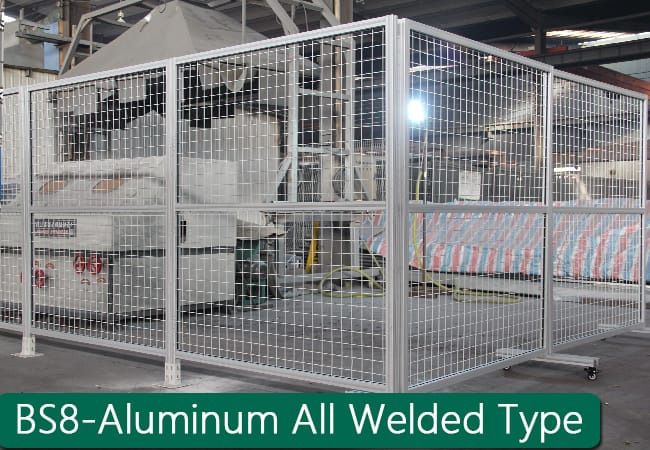

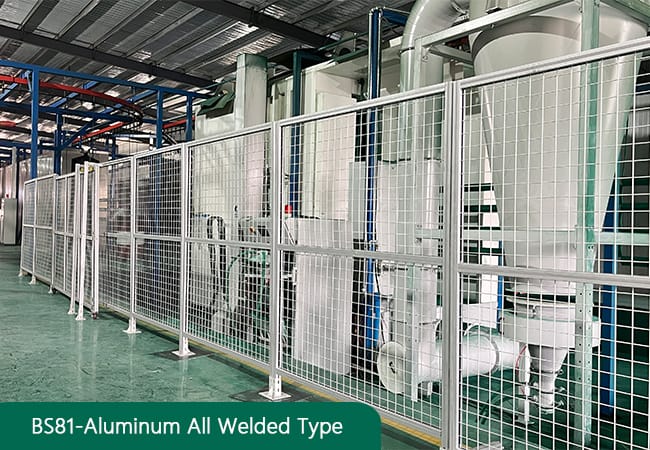

BENDIN700-All Welded Type（Aluminum Alloy）
- Lightweight High-strength Alloy Build: Premium full-welded aluminum alloy mesh delivers light weight plus rigid anti-deformation structure for stable isolation protection.
- Integrated All-welded Structure: Fully welded mesh & integrated frame ensures tight connection and excellent structural integrity.

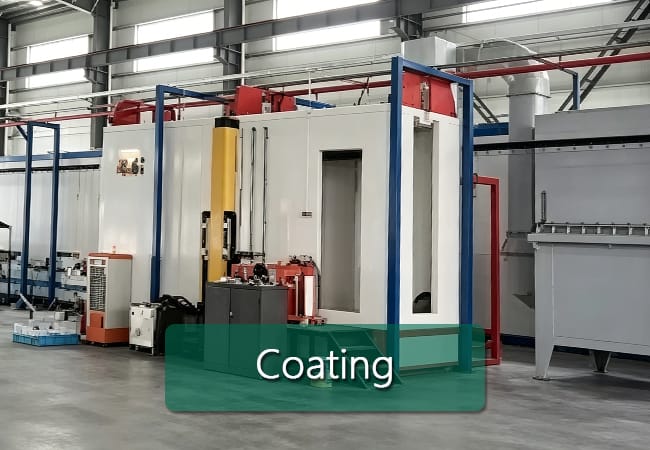

- Outstanding Anti-corrosion Durability: Oxidation treated plus electrostatic spray finish for superior rustproof performance, fits long-term indoor & outdoor workshop use.
- Modular Easy Assembly: Pre-welded panel with matched fittings enables tool-free installation & disassembly, cutting labor and construction expense.
Product Speciffcations

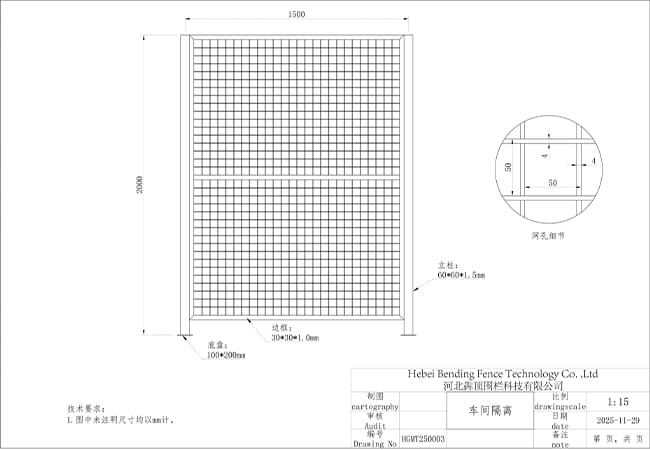

All Welded Type（Aluminum Alloy） Mesh Panel Specifications
| Parameter | Standard Specifications |
|---|---|
| Size (H×W) | 1.8m×2.0m / 0.6m–3.0m |
| Mesh | 50×50mm, wire 4.0mm / 3.0–6.0mm |
| Frame Tube | 20×30mm / 20×20mm, 30×30mm |
| Wheels | 4–5″ with brake / Universal wheel |
| Surface Treatment | Powder coating / Galvanized + coating |
| Color | Yellow, Black, Gray / Custom RAL |
| Feature | Movable, flexible / Connectable |
Available Post Systems
All Welded Type（Aluminum Alloy） Post Specifications
| Square Post | Specification |
Hole Size | 40×40mm / 50×50mm / 60×60mm |
Wall Thickness | 1.2mm / 1.5mm / 1.8mm / 2.0mm / 2.5mm / 3.0mm |
Post Length | 1.8-2.3m |
Special Accessories
- Security Accessories & Extensions

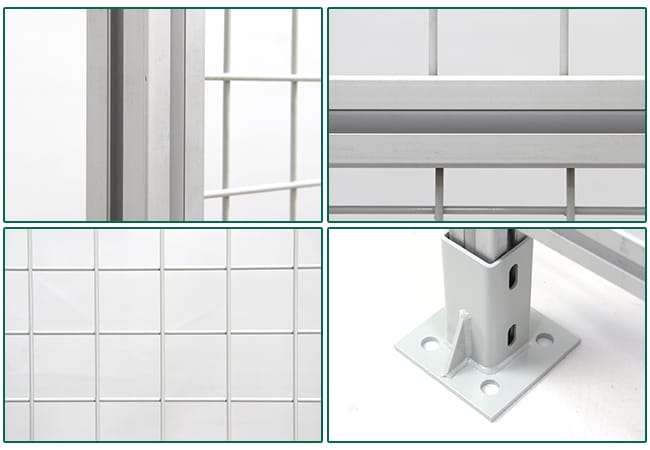

1. Mesh-to-Post Connection Components
- Spider Clips: Special metal clips for fastening aluminum welded mesh onto aluminum posts for quick installation.
- Security Bolts & Lock/Flat Washers: Stainless steel matched bolt and nut sets to avoid loosening and galvanic corrosion.
2. Optional Gate Accessories
- Gate Hinges: Bolt-on heavy-duty hinges for swing aluminum access gates.
- Sliding Roller Assemblies: Wheel pulley components for smooth sliding gate operation.
3. Other Auxiliary Accessories
- Post Plastic Caps: Black plastic end caps for aluminum post top corrosion protection.
Applications of All Welded Type（Aluminum Alloy）

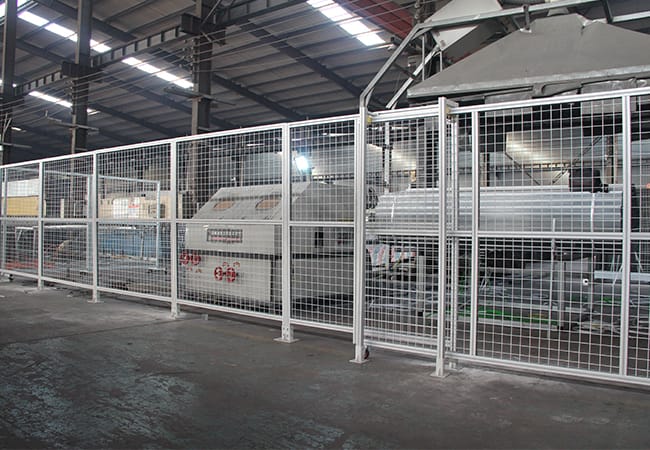

Mesh partition fence for full production line containment, preventing unauthorized access to automated machinery.

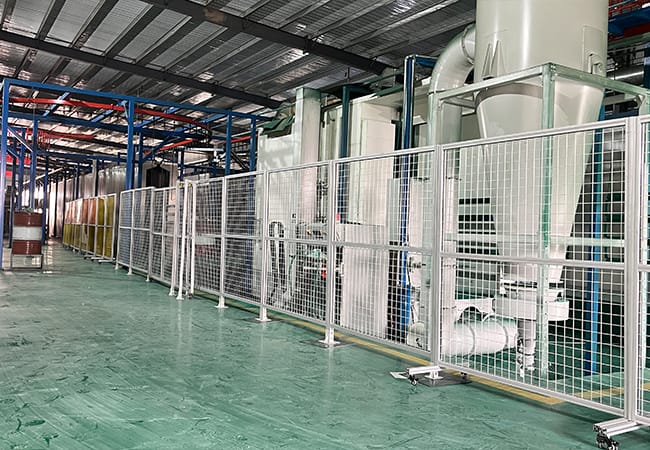

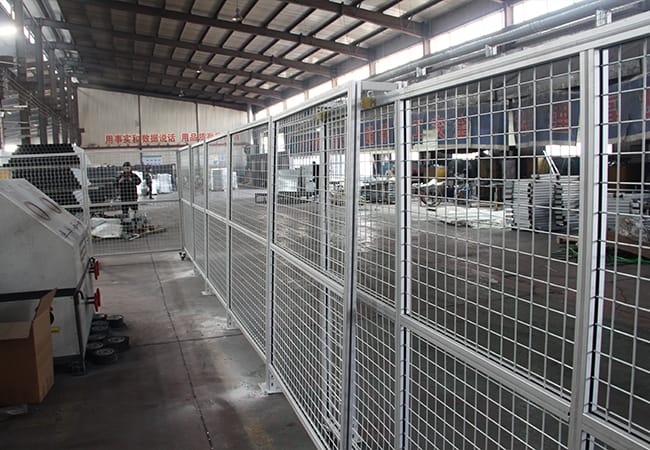

Modular mesh fence creates clear work zones in large factories, improving organization and safety management.

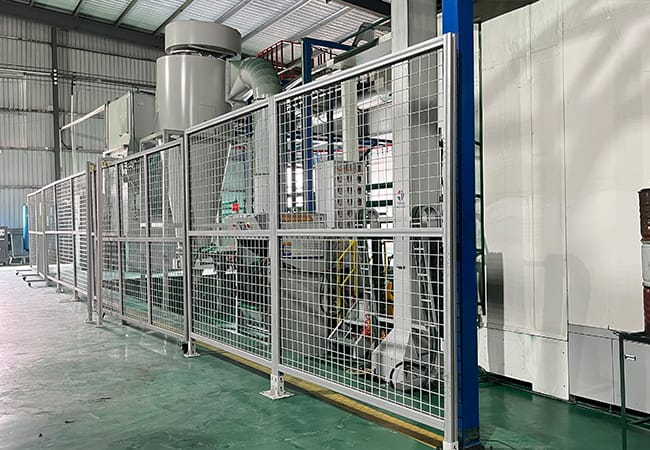

Breathable mesh fence isolates dusty operations, containing debris while maintaining ventilation in industrial environments.
Sturdy mesh safety barrier protects operators from moving machinery, ideal for machine tool workshops.

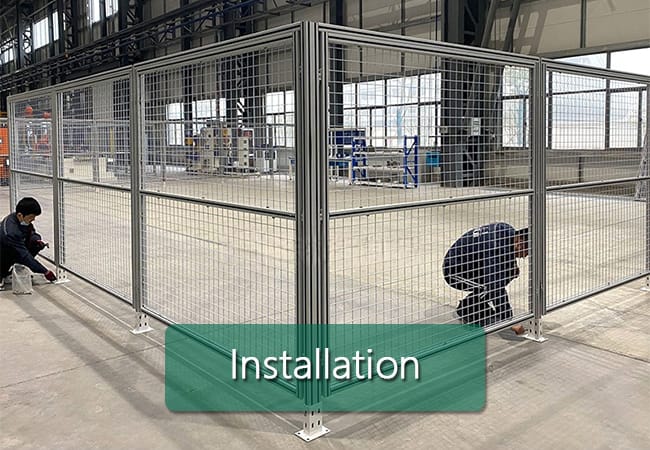

Detailed Installation Process for All Welded Type（Aluminum Alloy）
The installation of full aluminum welded mesh partition follows standardized steps to guarantee stable structure and anti-corrosion performance:
● Step 1: Mark upright post positions as per design drawings and reserve gate installation space.
● Step 2: Drill holes on concrete floor or dig pits for soft ground according to post layout size.
● Step 3: Secure posts with flange plates & expansion bolts; adopt weighted base for non-drilling installation.
● Step 4: Align aluminum mesh panels with posts and pre-fix via special spider clips.
● Step 5: Fasten all connections tightly with matched security bolts; mount hinges or sliding roller assemblies when gates are needed.
● Step 6: Inspect overall installation stability, bolt tightness and flexible gate operation; fit plastic post caps finally.
Your Trusted Partner for All Welded Type（Aluminum Alloy）
- High Protection: Precise all-aluminum welded structure delivers high weld tensile strength to withstand daily forklift and equipment collision, effectively protecting on-site personnel and production equipment from accidental damage.
- Long-lasting Anti-corrosion: Special aluminum anodizing & surface coating treatment. Outstanding rust-proof performance achieves over 1000-hour salt spray resistance, maintenance-free for more than 10 years in humid or corrosive workshop environments.
- Stable Structure: Uniform full-mesh force-bearing design improves impact resistance; firm spider clip & bolt connection eliminates panel deformation, ensuring long-term stable service of the whole fence.
- Easy Installation: Fully standardized prefabricated aluminum components. Single-person installation cuts working time by 50%, saving construction labor and overall project cost.
- Good for Workshop Management: High light transmittance of open mesh reduces workshop lighting consumption; transparent layout allows real-time cross-area production supervision for orderly site management.
- Safety & Compliance: Comply with GB/T 3091-2015. Deburred smooth aluminum edges prevent scratch injuries and facilitate factory routine safety inspection approval.
